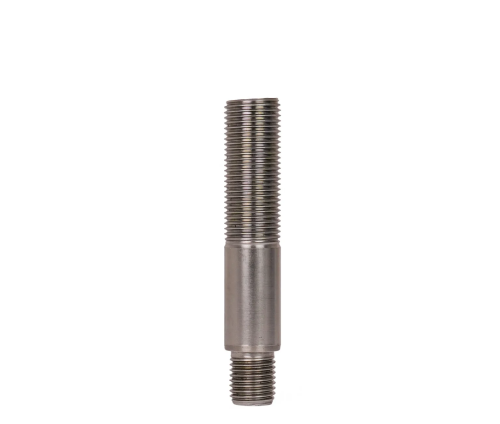

B7 Combo Studs
| SL. NO. | COATING OPTIONS |
|---|---|
| 1 | Zinc |
| 2 | Black Phosphate coating |
| 3 | Cadmium |
| 4 | Xylan |
B7 Combo Studs are high‑strength alloy steel fasteners engineered for demanding flange connections in pressure‑containing equipment and industrial piping systems. Designed for industrial buyers, procurement engineers, EPC contractors, maintenance teams, and project managers, these precision‑manufactured studs provide dependable fastening performance in high‑pressure and high‑temperature environments. Manufactured from heat‑treated chromium‑molybdenum alloy steel per ASTM A193 Grade B7, they deliver excellent mechanical strength, dimensional accuracy, and long‑term reliability across critical applications in oil and gas, petrochemical, refining, power generation, and heavy engineering industries. Unlike standard stud bolts, B7 Combo Studs feature two different thread diameters or thread forms on each end, allowing direct connection between flanges or equipment components with mismatched tapping or bolt‑hole sizes. This dual‑diameter configuration eliminates the need for re‑machining, adapter flanges, or field modifications, making them ideal for retrofit situations and mixed‑standard piping systems. Their engineered geometry ensures proper engagement depth, uniform load transfer, and secure clamping force across both connection points, supporting safe and consistent bolted‑joint performance under demanding operating conditions.
RFQ Forms-Studs
Details for quotation.
B7 Combo Studs are precision‑engineered threaded fasteners manufactured from ASTM A193 Grade B7 alloy steel. The combination‑stud design incorporates different thread lengths or configurations to meet specific flange, valve, pressure‑vessel, and equipment assembly requirements where conventional double‑end studs may not be suitable. Manufactured from heat‑treated chromium‑molybdenum alloy steel, these studs provide high mechanical strength, dimensional accuracy, and reliable performance in demanding operating conditions. Engineered to provide uniform bolt preload and secure clamping force, B7 Combo Studs help maintain gasket compression and joint integrity under fluctuating pressure, vibration, and thermal expansion. Their high tensile strength and fatigue resistance make them suitable for critical industrial applications requiring dependable fastening performance. Better Castings manufactures ASTM A193 B7 Combo Studs in accordance with ASTM A193 material requirements, compatible with ASTM A194 heavy hex nuts, ASME B18.31.2 dimensions.
- Manufactured from ASTM A193 Grade B7 alloy steel
- High tensile strength for critical bolted joints
- Combination thread configuration for specialized applications
- Excellent resistance to high pressure and elevated temperatures
- Precision-machined threads for secure installation
- Heat-treated for enhanced mechanical performance
- Reliable preload retention during thermal cycling
- Suitable for heavy-duty industrial equipment
- Available in standard and custom dimensions
- Manufactured to international engineering standards
Surface Finish Options
Material selection depends on operating pressure, process media, temperature, corrosion resistance, and flange material compatibility.
ASTM A193 Grade B7
The standard alloy steel grade offering excellent tensile strength, toughness, and fatigue resistance for pressure-containing applications.
ASTM A193 Grade B16
Recommended for elevated-temperature service requiring improved creep resistance.
ASTM A320 Grades
Suitable for low-temperature service where enhanced impact properties are required.
Stainless Steel Grades
304, 316, and other stainless steel grades are available for corrosive environments requiring improved oxidation and corrosion resistance.
Specialty Alloy Materials
Duplex Stainless Steel, Super Duplex, Inconel, Monel, and other high-performance alloys can be supplied for demanding offshore and chemical processing applications.
Other alloy materials can be manufactured to meet specific project specifications and international standards.
Applications
Wellhead Equipment Assembly
Used for securing critical pressure‑containing components; B7 may be suitable in non‑sour, non‑corrosive wellhead services but material selection must follow API/NACE and project requirements.
Heat Exchanger Channel Covers
Provides reliable fastening for removable covers subjected to thermal expansion and process pressure; B7 is commonly used where corrosion is not severe.
High-Energy Steam Systems
Specified for bolted joints operating under elevated temperatures and continuous mechanical stress; B7 is frequently selected when temperature and strength requirements are met.
Compressor Casing Connections
Supports secure fastening in rotating equipment where vibration resistance is important; B7 can be used where corrosion is manageable and proper preload practice is applied.
Reactor Vessel Closures
Used in chemical and process facilities requiring dependable bolt preload retention; B7 may be acceptable in non‑corrosive services but corrosion‑resistant alloys are required for aggressive chemistries or sour service.
Pipeline Isolation Valves
Ensures secure attachment of valve bodies and bonnets; B7 is used in non‑corrosive pipeline environments but NACE‑qualified or corrosion‑resistant bolting is required for seawater, chloride, or H₂S exposure.
Offshore Production Modules
Suitable for structural and equipment bolting in protected or internal applications; plain B7 is generally not the default for exposed marine service where corrosion‑resistant alloys or qualified coatings are commonly required.
Industrial Furnace Equipment
Applied in equipment exposed to recurring thermal cycles and demanding operating conditions; B7 may be used where operating temperatures and oxidation/creep demands are within its limits.
Frequently asked questions
B7 Combo Studs are high-strength threaded fasteners manufactured from ASTM A193 Grade B7 alloy steel with combination thread configurations designed for specialized industrial bolted joints.
They are commonly manufactured from ASTM A193 Grade B7 chromium-molybdenum alloy steel that has been quenched and tempered for high mechanical strength.
They are widely used in oil and gas plants, petrochemical facilities, refineries, power stations, pressure vessels, valves, and industrial piping systems.
Manufacturing generally complies with ASTM A193, ASME B18.31.2, ASTM A194 nut compatibility, ASME PCC-1 bolting practices, applicable API standards, and ISO 9001 quality management systems.
Yes. Their high tensile strength and fatigue resistance make them suitable for demanding pressure-containing equipment and flange connections.
Optional finishes include plain, black oxide, zinc plating, PTFE coating, and other corrosion-resistant surface treatments depending on application requirements.
